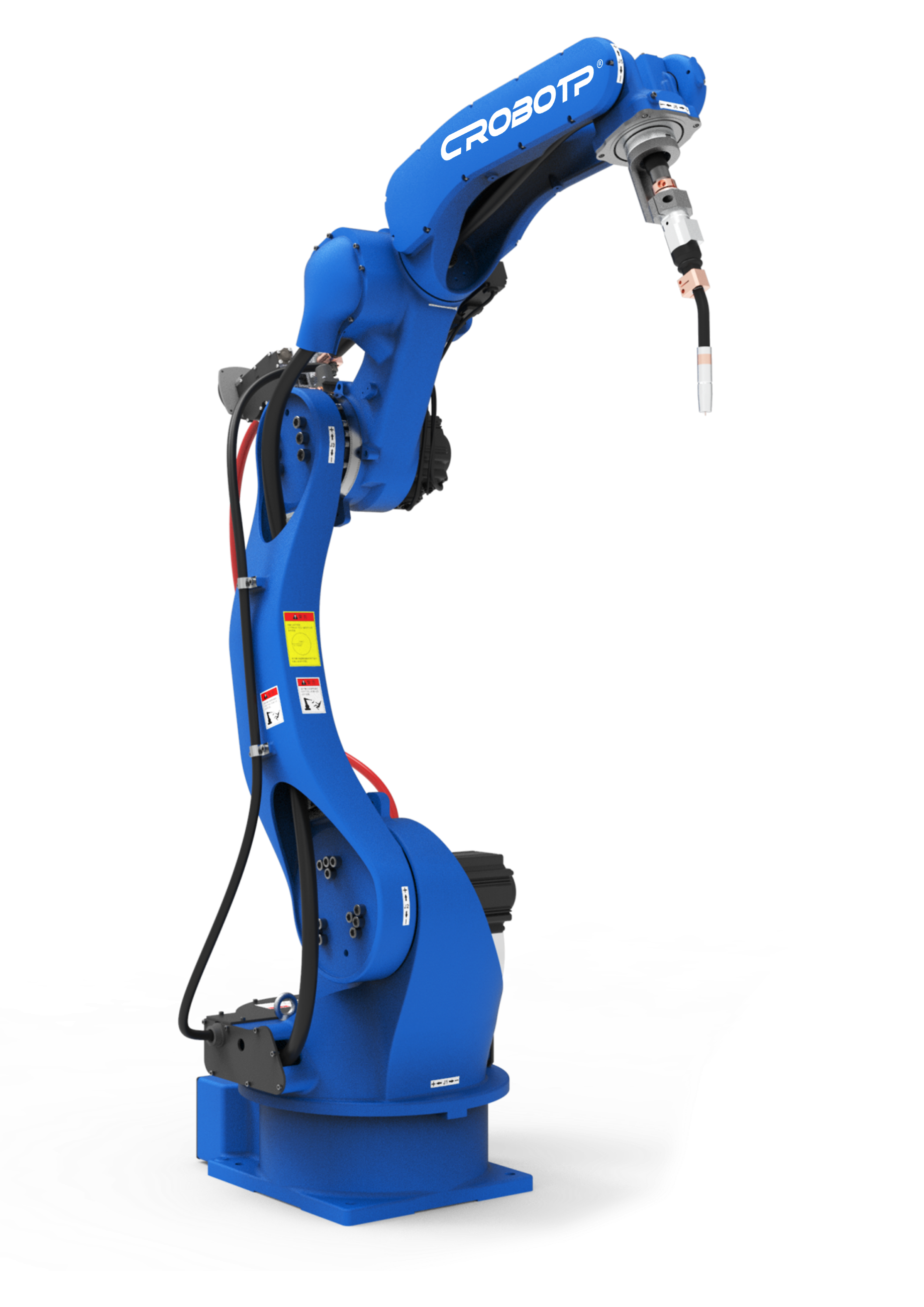

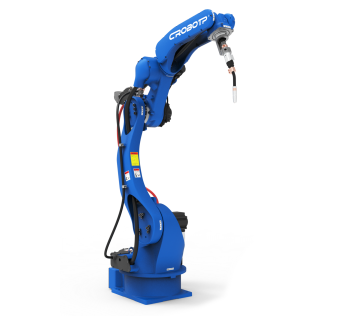

CRP-RH18-20-W

Functional features
· The arm span is nearly 1.8 meters. The design is highly compact and can be flexibly installed on the ground or upside down.

· With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range of welding applications.

· The safety emergency stop board independent of the control system is equipped with, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop.

· The robot body adopts highly flexible special cable.

· Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable. Built-in three-phase filter can effectively improve the performance of EMC and EMI.

· The robot body is with dual-circuit gas pipe to meet the welding demand.

· The inner diameter of 6-axis middle hole is 44mm, it can meet the installation requirements of water-cooling torch and bellows torch.

· Highly flexible welding cable is built-in.
